PA Series – aluminium heaters

Codice 623.0428.30

Caratteristiche principali

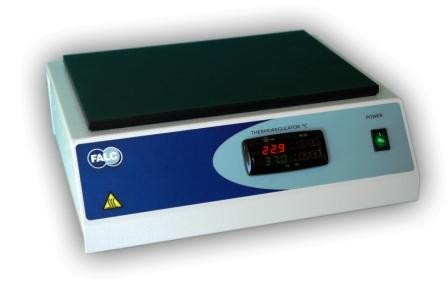

This plate heater by FALC is made of anodized aluminium and is ideal for laboratories requiring slide drying and precision, but no high temperatures.
Max. capacity: 20 slides in two rows.

Produced in compliance with the latest European Safety Standards. The rectangular housing is entirely in steel, oven coated with acidproof epoxy paint; thanks to a resistance beneath the plate temperature uniformity all over the base is guaranteed.

The plate heater is fitted with ON /OFF main switch and relevant green warning light for temperature control and regulation ; an electronic thermoregulator with step scale probe and orange warning light indicating the heater working are also provided; a digital thermometer on the front panel makes temperature read – out easier.
N.B. The max indicated temperatures refer to plate

Richiedi info PRODOTTO

oppure chiamaci al numero
+39 0363 305774

Caratteristiche tecniche

Plate Temperature

+30 to +100

Heating Elements Power

mm 270 x 200

Precision On The Plate

± 2

Heating Res. Capacity

W 140

Max Carrying Power Weight

Kg 10


Kg 4.4

External Dimension

mm 310 x 275 x 80

Security Class


Protection Class

IP 41


V/HZ 230/50-60
